High quality Remote Reading capillary thermometer

FOB Reference Price:Get Latest Price
$15.00 - $30.00 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
SRK
Model Number:
WTZ-280
Usage:
Industrial
Theory:
Bimetal Thermometer, Pressure Thermometer
Accuracy:
1.5%
Temperature range:
300
Name:
High quality Remote Reading capillary thermometer
Thread:
1/2"NPT
Installation::
Rear flange
Material::
All stainless steel 304
Processing customized:
Yes
Dial Size::
100mm
Stem Diameter::
10mm
Stem Length::
150mm
Field::
The remote reading,refrigeration plant,marine machinery,etc.
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
paper carton
Port
Tian Jin
Lead Time :
5 days

 Name:  High quality Remote Reading capillary thermometer



Beijing ShengRuiKe offer a complete range of made to order, high quality mechanical dial capillary thermometers available with a wide range of options to meet the requirements of most industrial applications





I. Remote Reading capillary thermometer Main technician parameter



Dial Size:3", 4" 5", 6"
Stem diameter:Φ6.3, Φ8, Φ10
Temperature probe :Φ14 x 60,100,150, 200, 250, 300mm
Connection:Bottom, and back connection
Capillary length :≤ 20 m
Connection thread:1/4", 3/8", 1/2" BSP, BSPT, NPT
Case ring:304 stainless steel
Window (lens):Polycarbonate lens, tempered glass available
Accuracy:1.6% full scale
Option Info:Other materials, ranges, connections are available upon request





II. Remote Reading capillary thermometer More Specification for Choice



 1. Dial Size?



2. Temperature Range?



3. Back or Bottom or Adjustable Type?



4. What is the thread size?



5. Display C&F or only C?



6.Capillary Length?

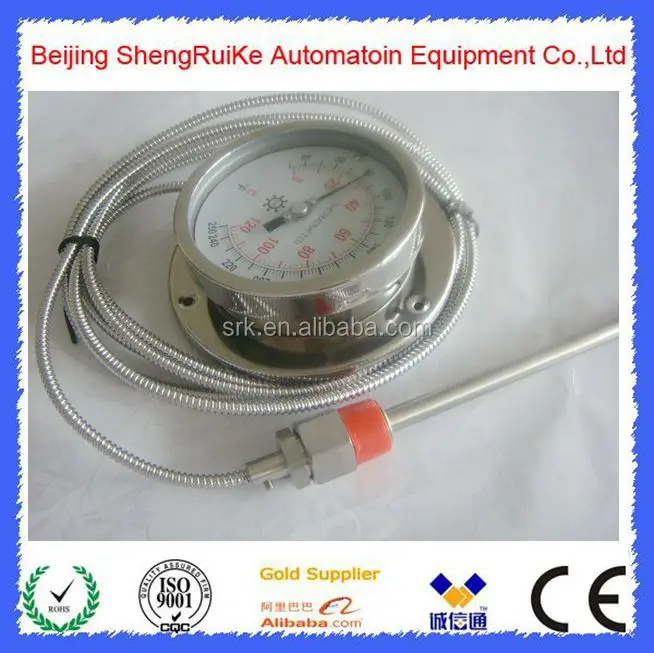

 III. Remote Reading capillary thermometer Show





Remote Reading Thermometer
