I.Name: K Type Thermocouple with Right Angle Elbow
II.Thermocouple with Right Angle Elbow working principle
The operation principle of a thermocouple is based on Seebeck effect: In a closed circuit
constituted by two homogeneous conductors of different materia, When the temperature
gradient exist between the two junction, the electric current flows through the circuit.
At this time the thermal electromotive force(EMF) will be produced between the two junction.
Note: the thermal electromotive force changes along with the temperature, the value of thermal
EMF is related to materials of the conductors and the temperature difference of two junctions of
thermocouple. It has nothing to do with its length and diameter.
III. Thermocouple with Right Angle Elbow material
Pt Rh30 –Pt Rh6
Pt Rh 10- Pt
Ni Cr Si – Ni Si
304 321 310S

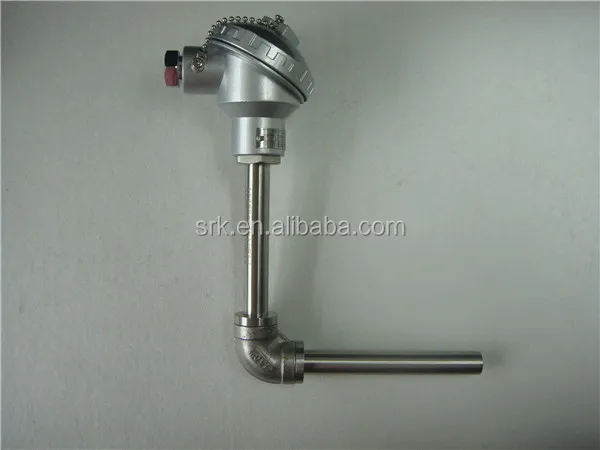

IV. Thermocouple with Right Angle Elbow show
