Stainless steel thermocouple weldless thermowell

FOB Reference Price:Get Latest Price
$5.00 - $9.90 / Pieces | 5 Piece/Pieces (Min. Order)
Usage:
Industrial
Theory:
Bimetal Thermometer
Accuracy:
a
Temperature range:
500c
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
SRK
Model Number:
TH001
Name:
Weldless thermowell
Thermowell Thread:
1/2NPT
Thermowell Length:
200mm
Thermowell Material:
Stainless steel, brass or specified
connection type:
flange, thread, welding
working preasure:
-0.1-30mpa
Country:
China
Warranty:
1 Year
Diameter:
6mm Can be customized
MOQ:
One Piece
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
paper carton , as buyer's requirments
Port
tianjin

I . Name:  Stainless steel thermocouple weldless thermowell





II.  Weldless thermowell Specification:





1/2" NPT Thread Connection



Drilled Bar  Thermowell



Application:  connect with thermocouple/RTD or bimetal thermometer



Material: Stainless steel, brass or specified



Exterior/Size

Type

N

E

D

SW

U

L





THO4A

M20×1.5
( NPT1/2)

NPT1

-

34

60
85
110
160
210
260
360

100
125
150
200
250
300
400



THO4B

M20×1.5
( NPT1/2)

NPT3/4

-



U(mm)

Medium velocity (m/s)

Nominal pressure P(600°C)(MPa)



≤100

≤80

≤30



≤260

≤18

≤30



The rest  U

0

≤6.4





III.  Weldless thermowell Feature:


1.Type: straight type or reduced type



2.Material: SS304,SS316



3.RTD connection:1/2BSP,1/2NPT....



4.Process Connection:1/2BSP,1/2NPT..



5.Insertion length:100mm,200mm,300mm........



IV. Weldless thermowell characteristics



1)Its usage matches with two-joint thermocouple and RTD in order to protect the their normal operations



2)Partial products may be used in high voltage and high flow velocity occasions within certain temperature band.



3)It has been simultaneously made with the equipments



4)No meed to stop the machine in case of repairing or cha-nging the thermocouple or the RTD.



5)The forms such as blind hole taper and blind via reducing etc processed by stainless steel



6)The structural forms such as integral drill type,integral drill flange welding type and steel pipe soldering type and so on



7)The mounted forms such as NPT thread,metric thread flange,welding etc.

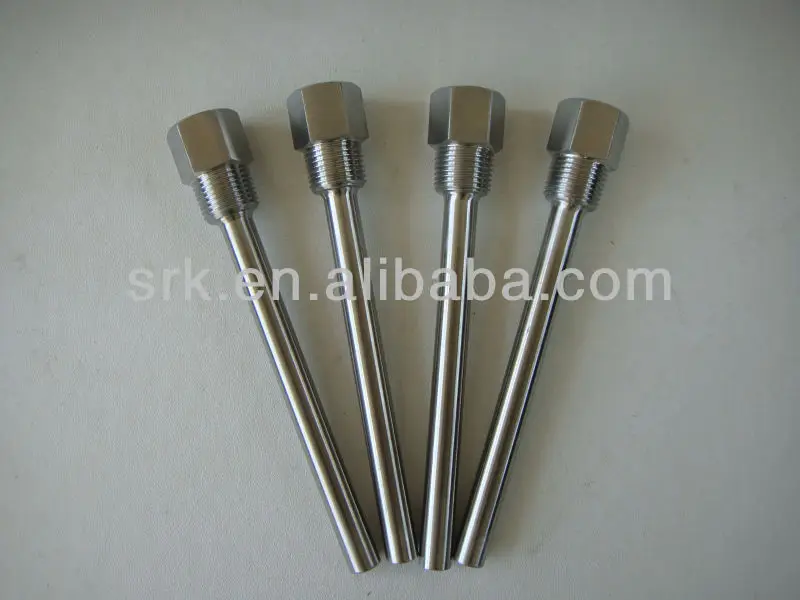

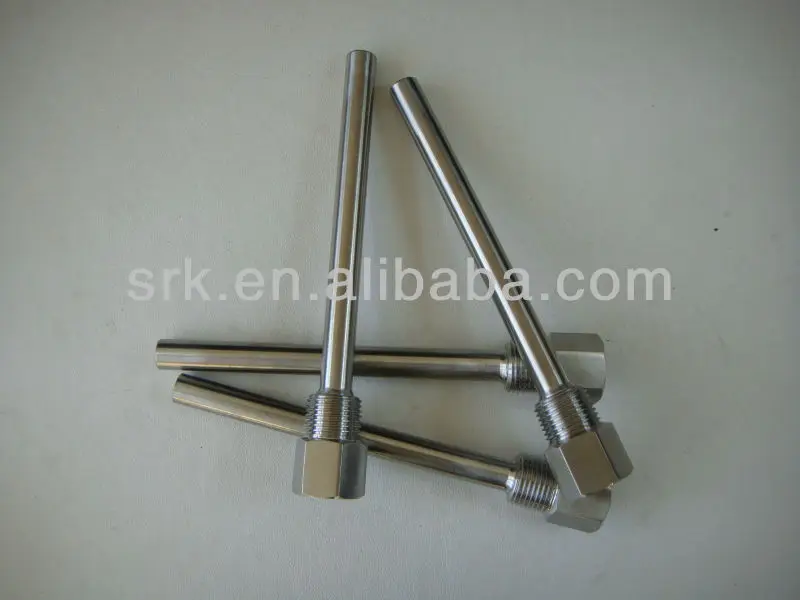

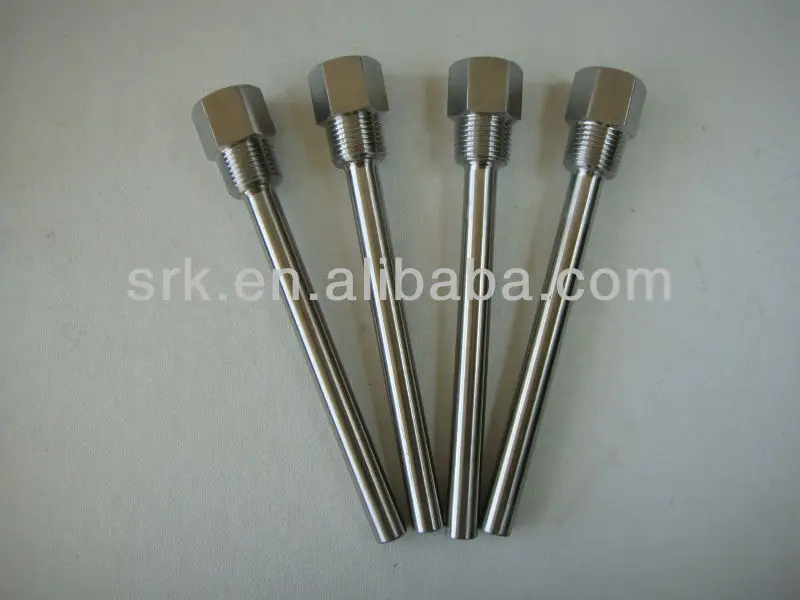

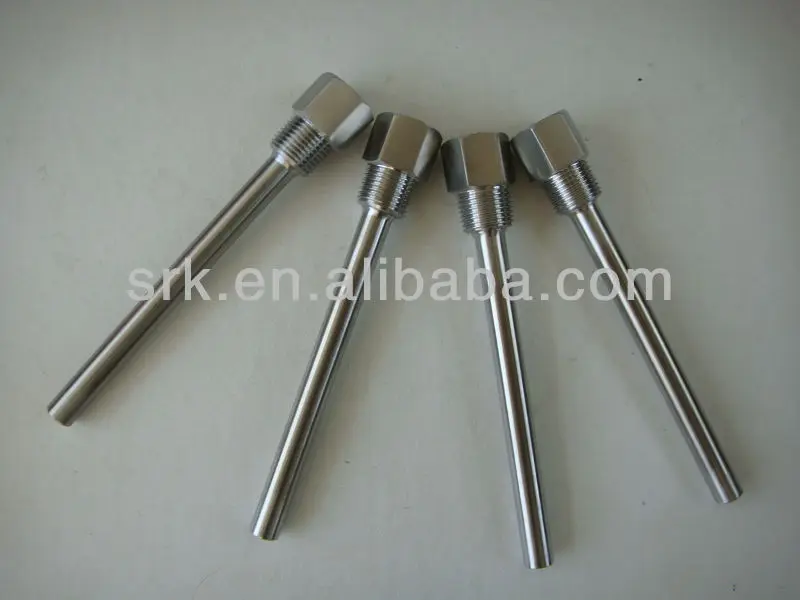

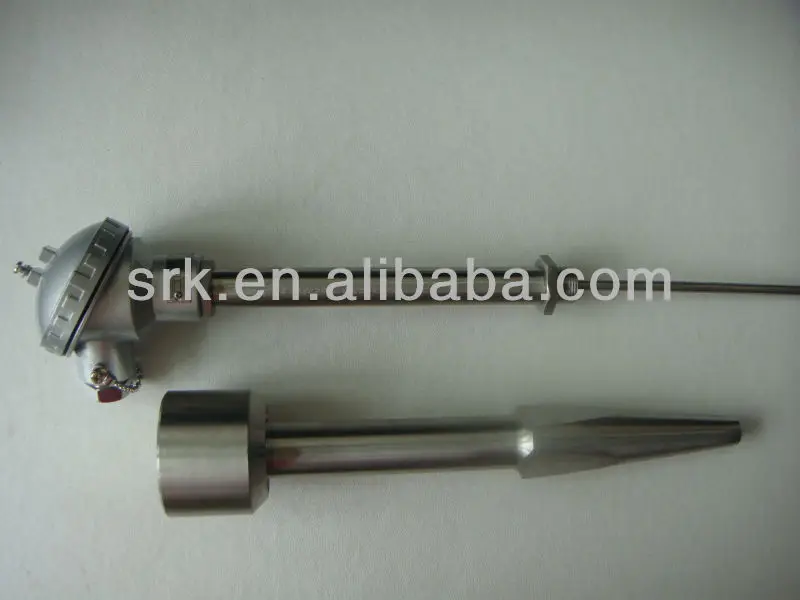

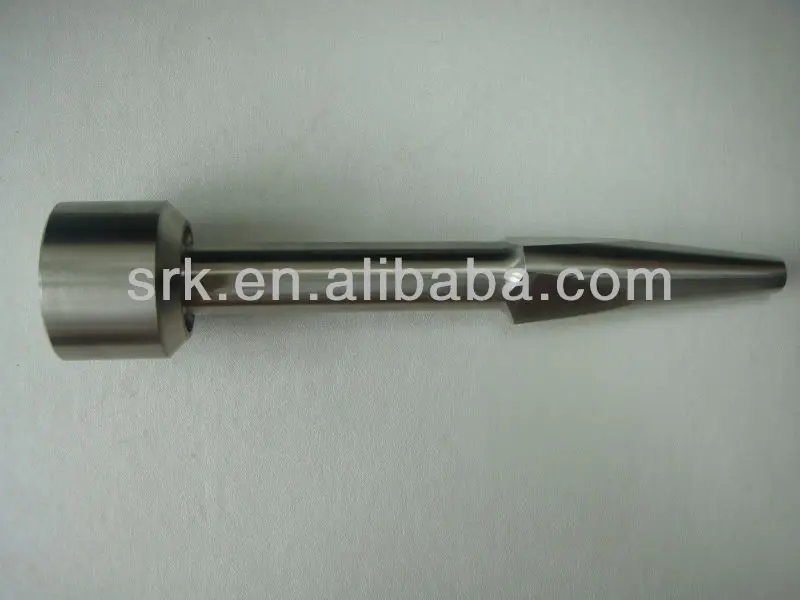

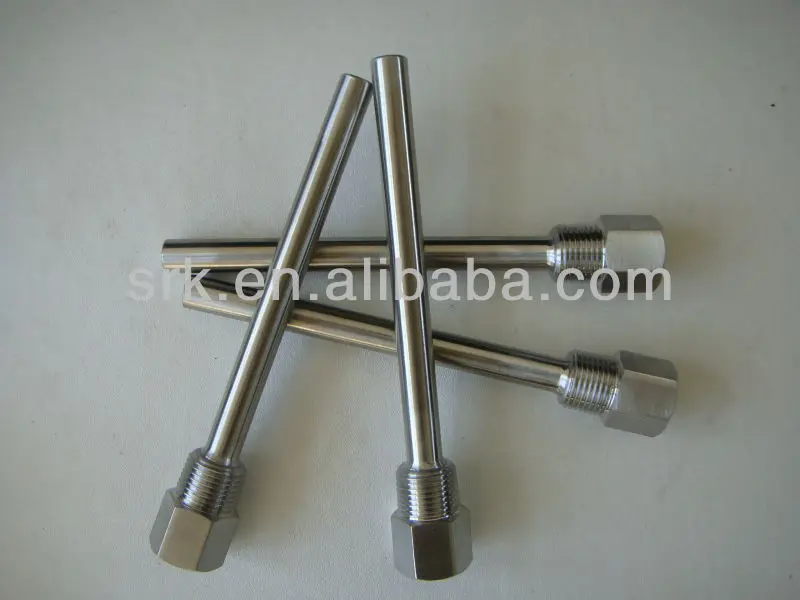

V.Weldless thermowell shows
