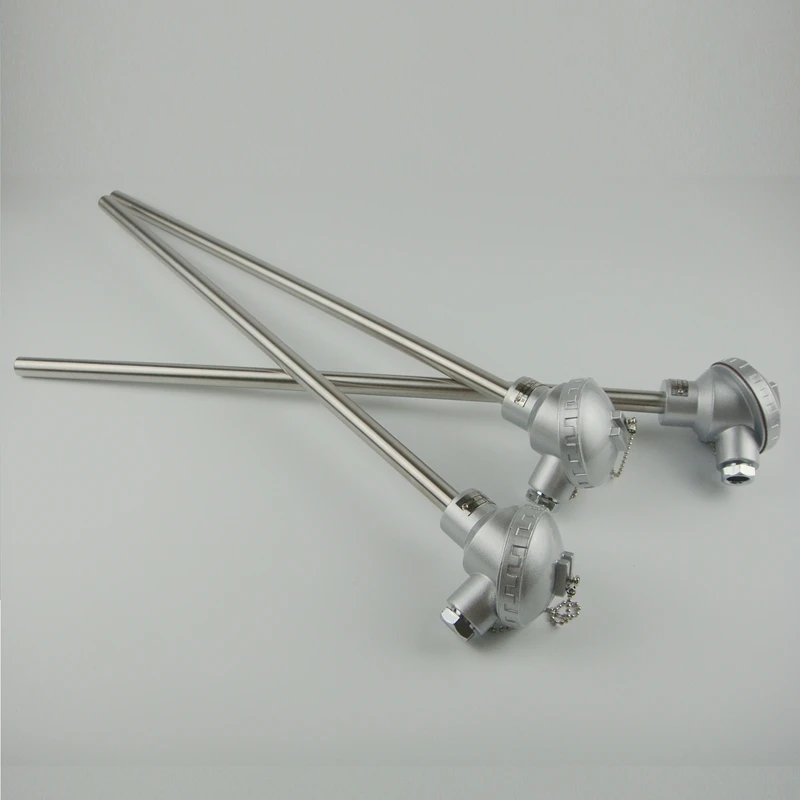

Assembly Thermocouple WRN-130

FOB Reference Price:Get Latest Price
$18.00 - $30.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
SRK
Model Number:
WRN-130
Usage:
Industrial
Theory:
Thermocouple Thermometer
Accuracy:
Class I
Temperature range:
0-800C
Product name:
Assembly Thermocouple WRN-130
Diameter:
10mm
length:
200mm
type:
K
Sheath:
SS321
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
paper carton
Port
tianjin
Lead Time :
7 day

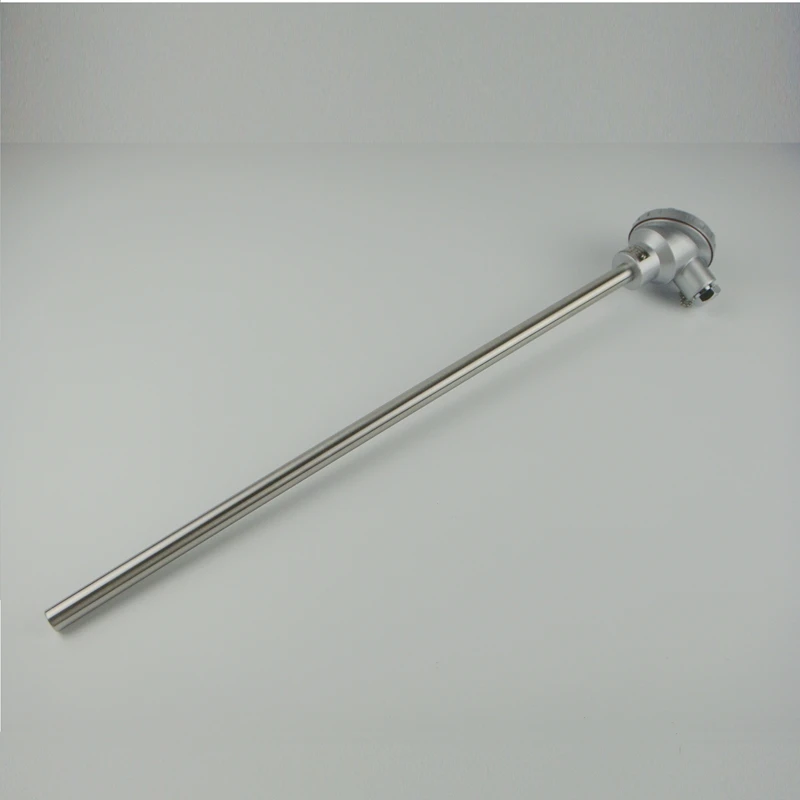

Name: Assembly Thermocouple WRN-130



1.K type industrial thermocouple
2.Diameter 10mm
3.Thermocouple length:200mm
4. 0-700C
5.SS321 Sheath







I. Application

 It is usually connected with display meter, recording meter and computer, etc. to directly measue temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300C during various production process.







II. Features

With quick response, reducing dynamic error;

 Optional installation methods;

 Wide measuring range ;

 High mechanical strength, good pressure-resistant performance;



III. Operation Theory

The electrodes of armored thermocouple are made of two different materials. the temperature difference between measuring end and reference end results in pyroelectric potential ,then the meter indicates the corresponding temperature to the pyroelectic potential.


IV. Main Technical Parameters

 Executive standard

 IEC584

 IEC1515

 GB/T16839-1997

JB/T5582-91


V. Measuring Range & Tolerance


Type

Graduation

Tolerance class

I

II

Tolerance value

Measuring range°C

Tolerance value

Measuring range°C

WRNK

K

±1.5°C

-40~+375

±2.5°C

-40~+333

±0.004|t|

375~1000

±0.0075|t|

333~1200

WRMK

N

±1.5°C

-40~+375

±2.5°C

-40~+333

±0.004|t|

375~1000

±0.0075|t|

333~1200

WREK

E

±1.5°C

-40~+375

±1.5°C

-40~+333

±0.004|t|

375~800

±0.004|t|

333~900

WRFK

J

±1.5°C

-40~+375

±1.5°C

-40~+333

±0.004|t|

375~750

±0.004|t|

333~750

WRCK

T

±1.5°C

-40~+125

±1°C

-40~+133

±0.004|t|

125~350

±0.0075|t|

133~1000

WRPK

S

±1°C

0~+1100

±2.5°C

0~600

±[0.003(t-1100)]

1100~1600

±0.0025|t|

600~1600
